How to install Juno Bronze Waterfall Rainfall LED Bathroom Shower With Hand Held Shower | JS2271
Ceiling Mount Shower Head Installation Instructions
|
Step 1: Take Out the Old Shower Head
You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it. Step 2: Keep the Shower Arm Clean and In Good Shape Step 3: Time to Add New Teflon Tape Step 4: Connect the Showerhead Step 5: Tighten the Showerhead |
![]() |
|

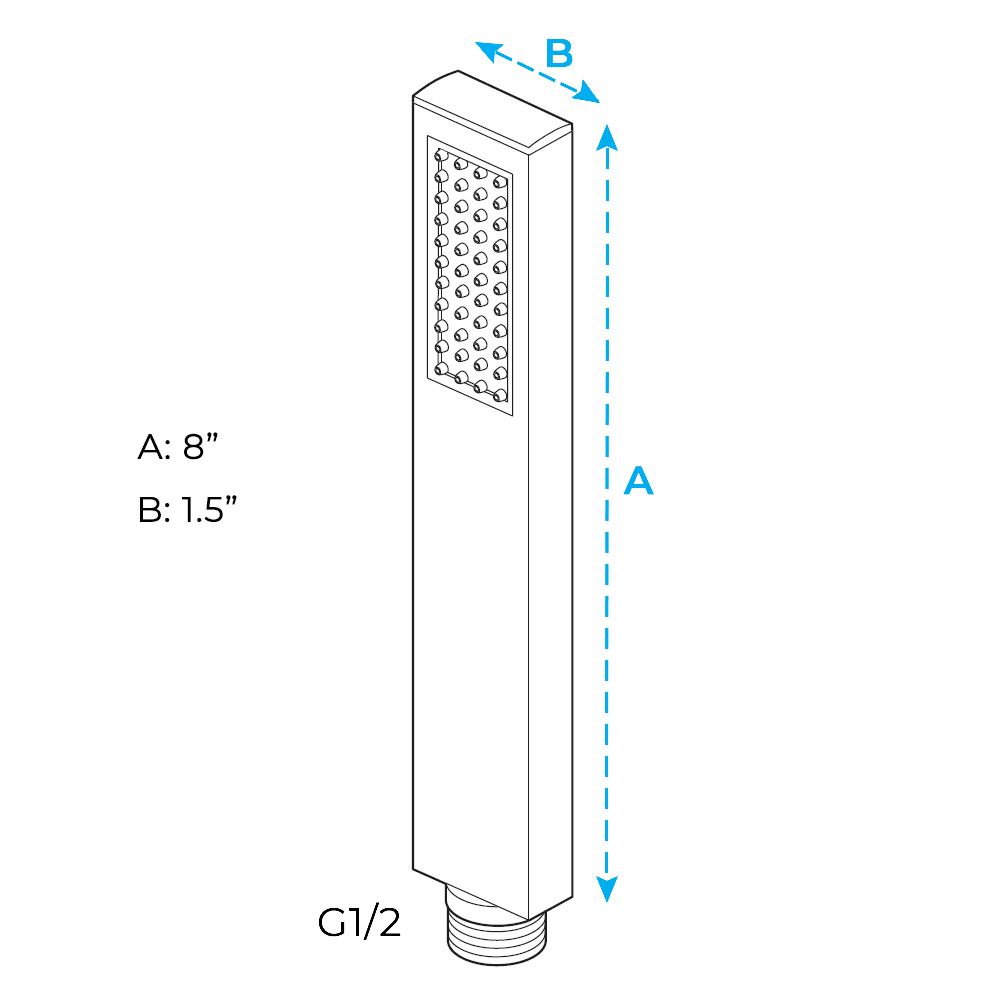

Hand Held Shower Installation Instructions

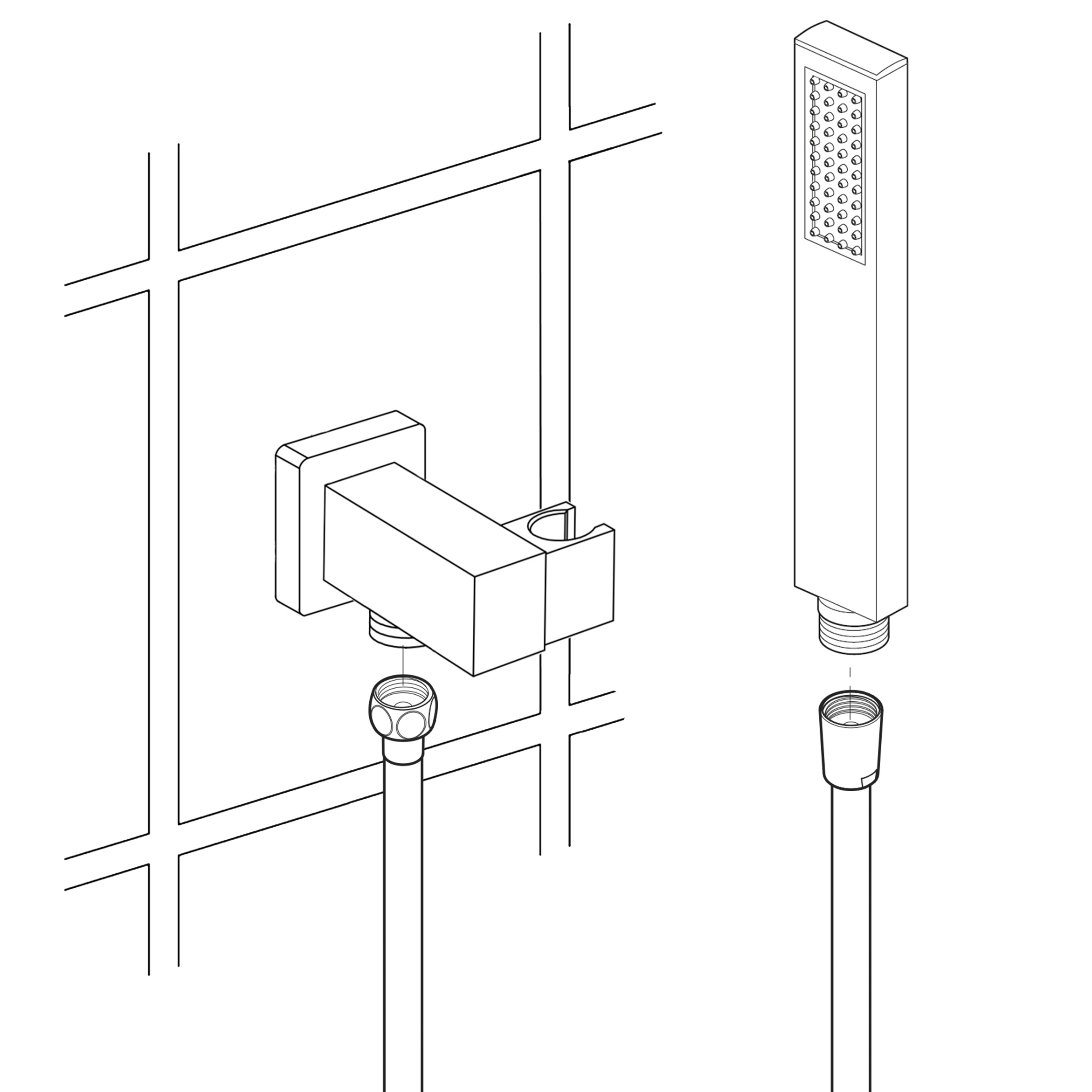

| Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2″ BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting. • Install the ‘Wall Outlet’, thread long male 1/2″ BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation. |
![]() |
|
Shower Thermostatic Mixer Installation Instructions

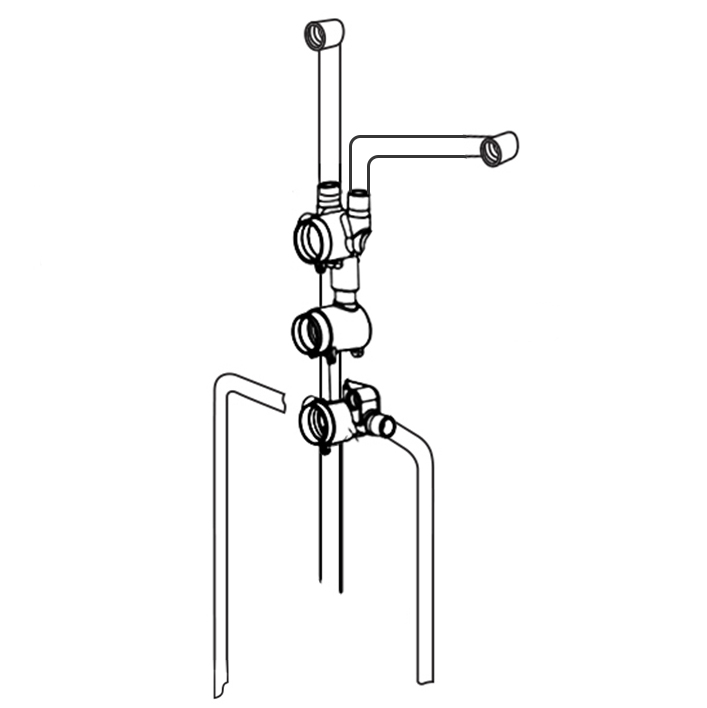

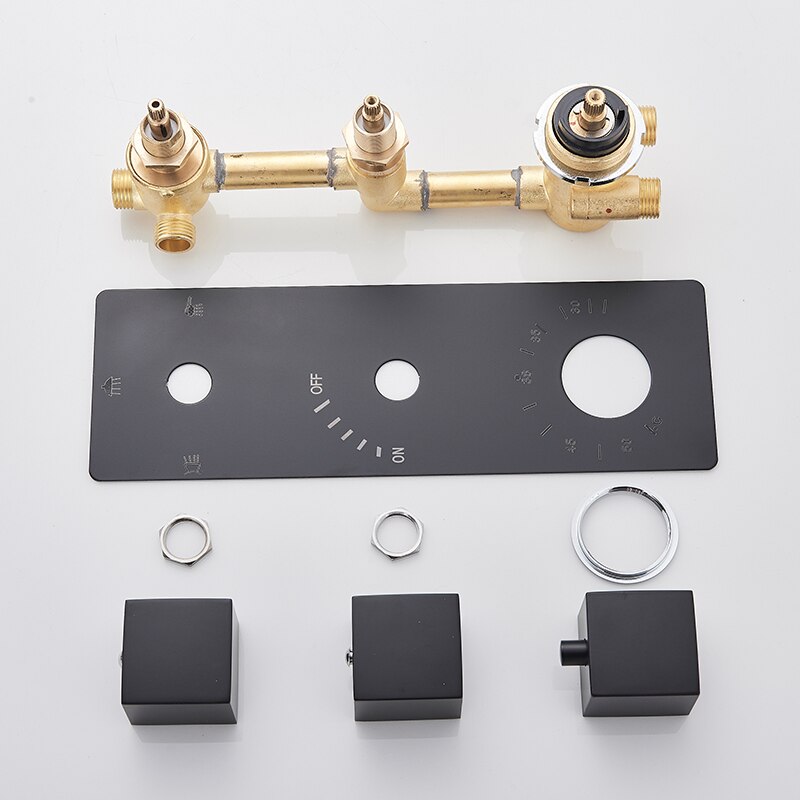

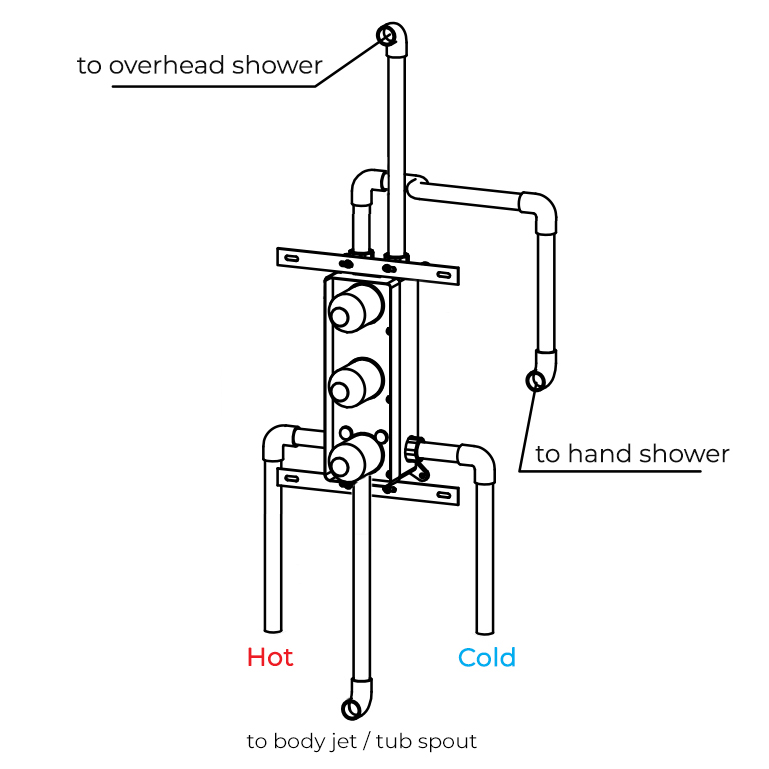

| 1. Attach the positioning bar to the rough-in body (4,5) with tapping screws. Mark the location of the mounting holes. 2. Remove the rough-in body and drill pilot holes at the locations marked in the previous step. Insert anchors. 3. Attach the rough-in body to the wall. 4. Connect the rough-in body to the water supply pipes according to the diagram. 5. Finish the wall surrounding the shower with a thickness of 1/2″-1-1/2″. a) Finished wall surface should not exceed the upper edge of the installation box. 6. If the tile exceeds the edges of the installation box, trim the tile as necessary to install the trim plate. b) Trim the tile around the installation box as necessary. 7. Remove the plastic guard and place the trim plate over the installation box. Install the screws covers, handles and buttons. |
![]() |
|

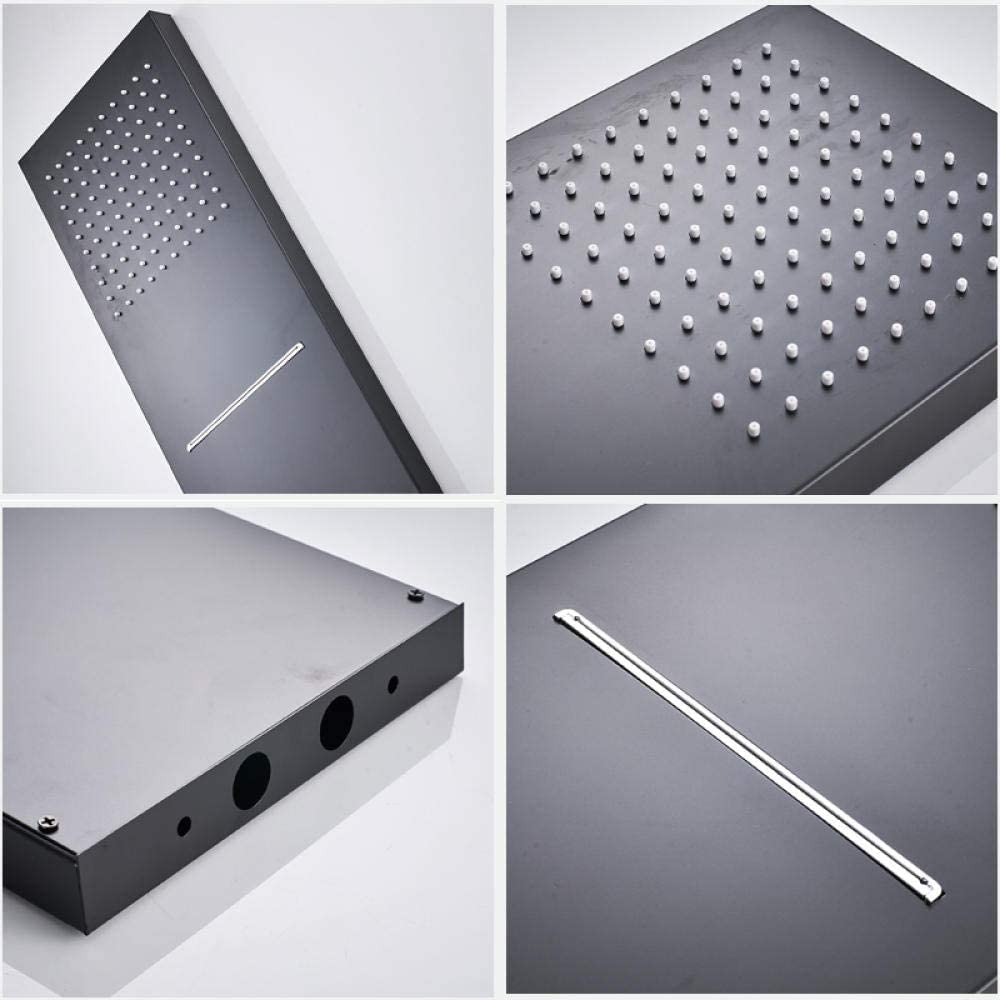

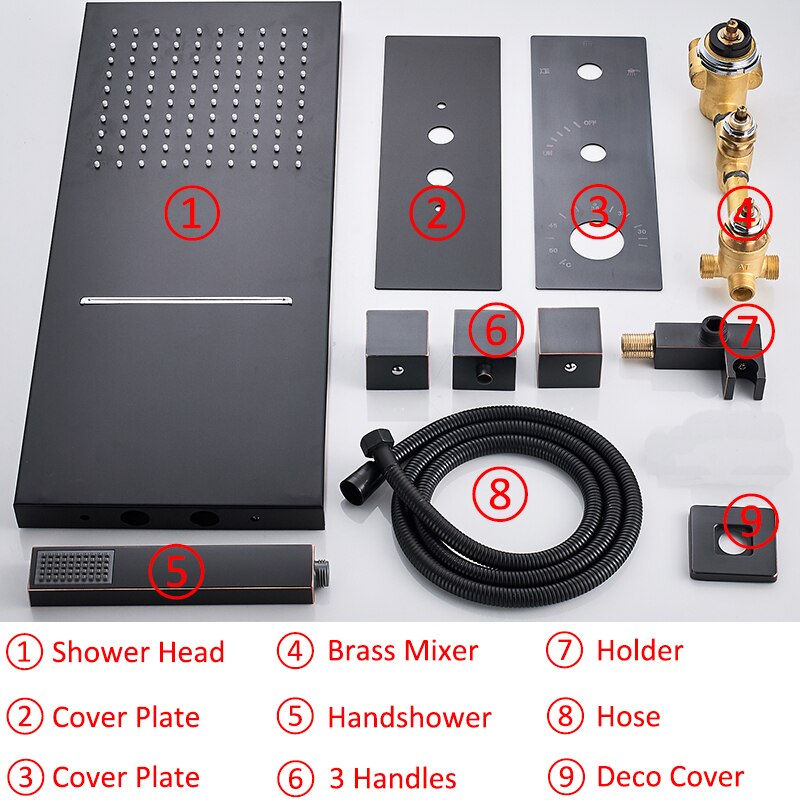

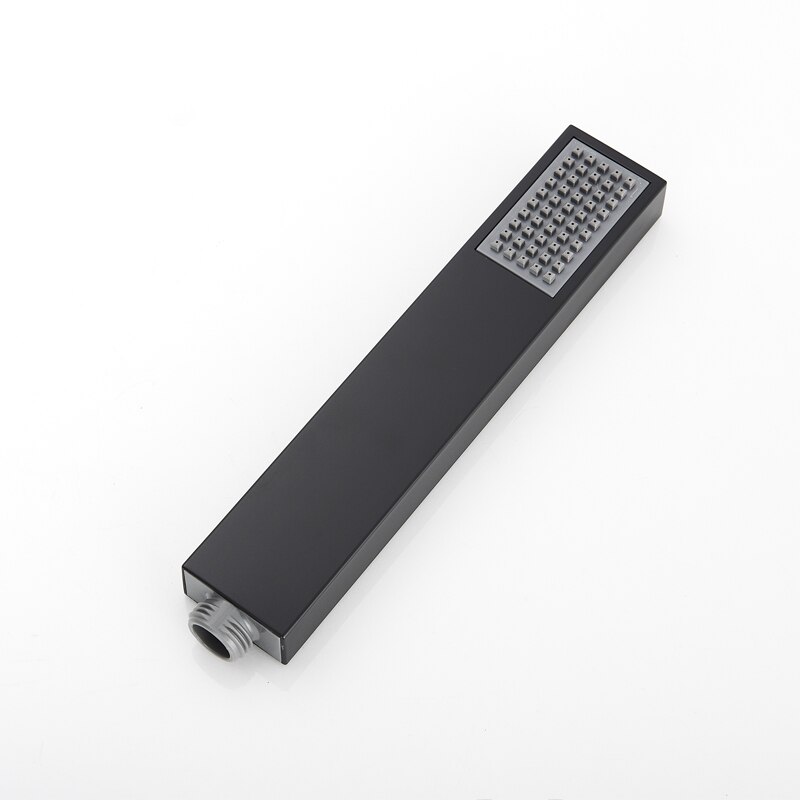

Product Images
| Step 1: | rain shower | Step 2: |
![]() |
![]() |
|
| Step 3: | Step 4: | |
![]() |
![]() |
|
| Step 6: | Step 7: | |
![]() |
![]() |
|

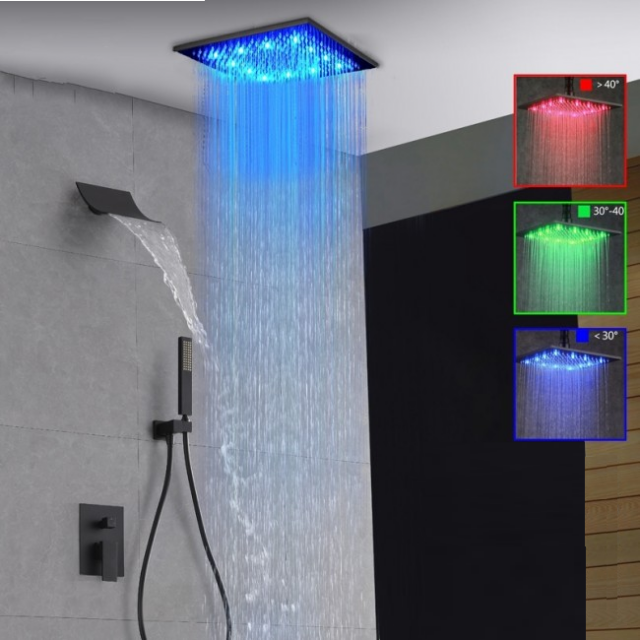

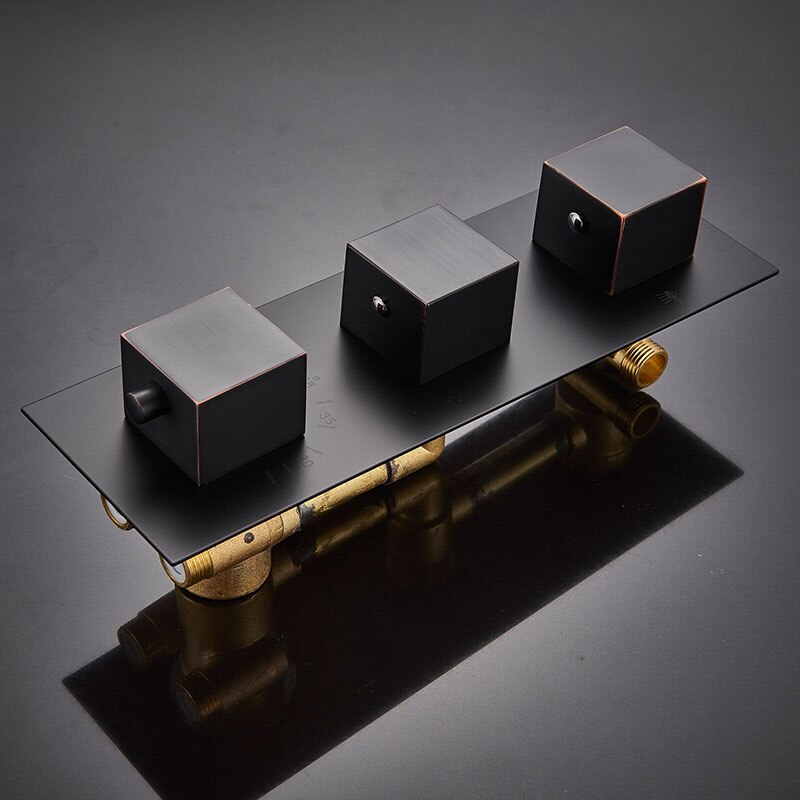

Juno Bronze Waterfall Rainfall LED Bathroom Shower With Hand Held Shower

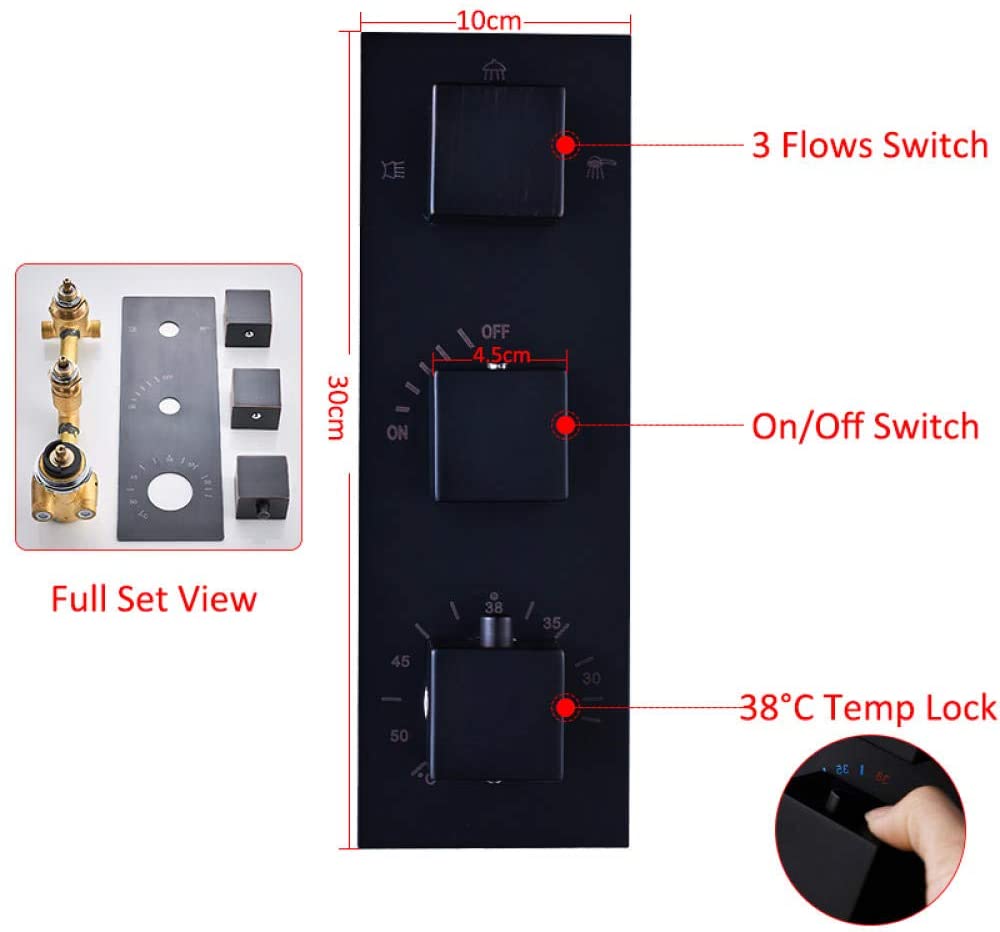

ORB Water Rainfall LED Bathroom Shower with Hand Held Shower comes in orb finish bathroom wall mounted faucet. It has a blackened color. It is a type of a single handle bathroom wall mounted showerhead. It has a modern & stylish look. It comes in waterfall temperature control. It can use a mixer for hot & cold water.
Features:
